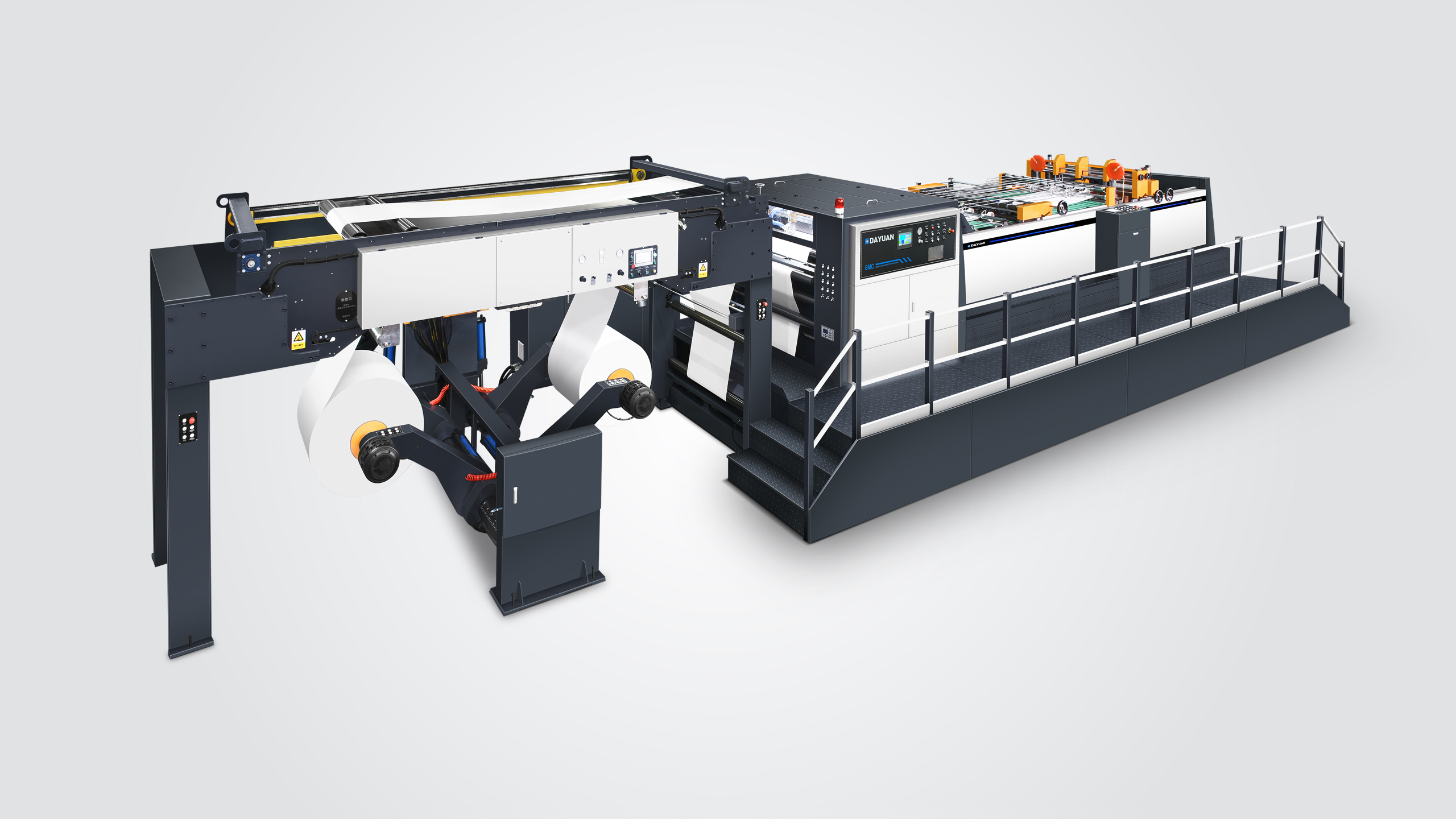

Based on SMC series Servo precision Double-helix High Speed Sheet Cutter Machine, this machine equipped with automatic splicer and pallet changer, which enable it realizing fully automatic operation, and embodied the intelligent and efficient technical characteristics of the machine.

Auto splicer

Auto pallet changer

Non-stop rolling curtain paper delivery device

Auto brake

Auto anti curve

Auto tension control

Auto edge position correction

Auto positioning slitting system

Paper pre-press device

Embedded double helix knife(invention patent)

Reject gate

Anti-static device

3 times delivery(no impression line)

Collecting board pneumatic lifting device

Siemens plc system
| Model | SMC-1900ZH |
| Model of cutting paper | Double rotary sheeter |
| Thickness of cutting paper | 80-1000GSM |
| Cutting length range | 450-1650mm |
| The format of slitting | 2 sheet(Optional) |
| Cutting precision | Cutting length≤1000mm: ±0.1mm Cutting length>1000mm: ±0.1% |
| Max. cutting meter speed | 300 m/min |
| Max. cutting speed | 385 cuts/min |
| Max. scroll diameter | 1800mm |
| Max. paper cutting width | 1900(75”)mm |
| Max. paper piling height | 1600mm |
| The request for air compressor | 0.8Mpa |
| Power consumption | 380V/220VⅩ50Hz |
| Gross weight | 32000kgs |
| Full-load power | 112kw |
| Cutting Length(mm) | Speed(m/min) | Speed(cuts/min) |
| 450 | 100 | 210 |
| 500 | 110 | 220 |
| 600 | 155 | 260 |
| 700 | 230 | 320 |
| 750 | 290 | 385 |
| 800 | 300 | 380 |
| 900 | 300 | 345 |
| 1000 | 300 | 300 |
| 1100 | 290 | 265 |
| 1200 | 280 | 235 |
| 1300 | 260 | 210 |
| 1400 | 260 | 190 |
| 1500 | 260 | 175 |
| 1600 | 250 | 160 |
| 1650 | 250 | 155 |
